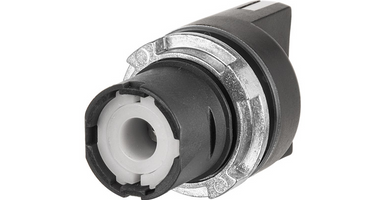

New Elfin 2-position United States

To acquire the best quotation for your desired product, kindly contact us through e-mail or our contact form.

Approvals : CE, UL, CSA
Compliance with standards : IEC-EN60947-1, IEC-EN60947-5-1, UL508, CSA C22-2
Compliance with standards : UNI CEI EN 45545-2, CEI EN 61373
Operating temperatures : -40° ÷ +70°C
Environmental operating values : +25°C-97%RH / +45°C-93%RH (IEC-EN60068-2-30)
Protection degree : IP66 - IP69 (IEC-EN60529)
Protection against impact : IK06 (IEC-EN62262)
Mechanical durability : 1.000.000 Operations
Shock resistance : 30g duration=18ms (EN-IEC 60068-2-27)
Shock resistance : 50g duration=11ms (EN-IEC 60068-2-27)
Vibration resistance : 5g f= 2...500Hz (EN-IEC 60068-2-6)
Contact blocks configuration : Max no. 8 blocks (4+4)
Material : PA Polyamide
Locking ring material : Zamak zinc alloy
Fixing diameter : 22.5mm - Thickness 1÷6mm
Tightening torque : 2 ÷ 3Nm (17.7 ÷ 26.6 Lb-in)
Protection against electric shock : Class II (IEC-EN61140)
