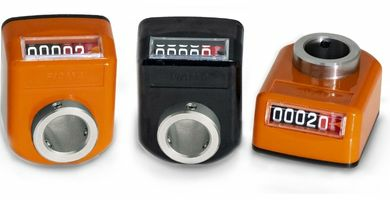

OP7
To acquire the best quotation for your desired product, kindly contact us through e-mail or our contact form.
▶ The coupling of numbers with a rubber-joint allows, especially in high ratios, a bigger flowability and manoeuvre speed.
• 5 digits counter (standard red digit indicates decimals; on request 2 red digits for hundredths or 5 black digits for mm) and a red digit with hundredth divisions for more reading accuracy. Readings until 99999. ‘Lens to improve the reading’: digit height 7 mm.
• Shock-proof self-extinguishing technopolymer case. Protection IP64. Max. temperature 80°C.
• Reading with 18° inclined or frontal view.
• Standard shaft bore ø20 (OP7) or ø25 bore (OP7F25). Other holes smaller than 20 with reducing bush.
On request:
• Special ratios and measures in Inch.
• Security dowel “c” ø10,5/12 mm.
• Model “IN” with metallic parts in stainless steel.
• Colours: orange RAL 2004, black RAL 9005, grey RAL 7004.
• Combinable tools: flanged gearbox: RINV-OP65.
• Available accessories: shaft block flange, spacer flange, movement knob, handle, handwheel (see drop-down menu on the right).
